Detailed features

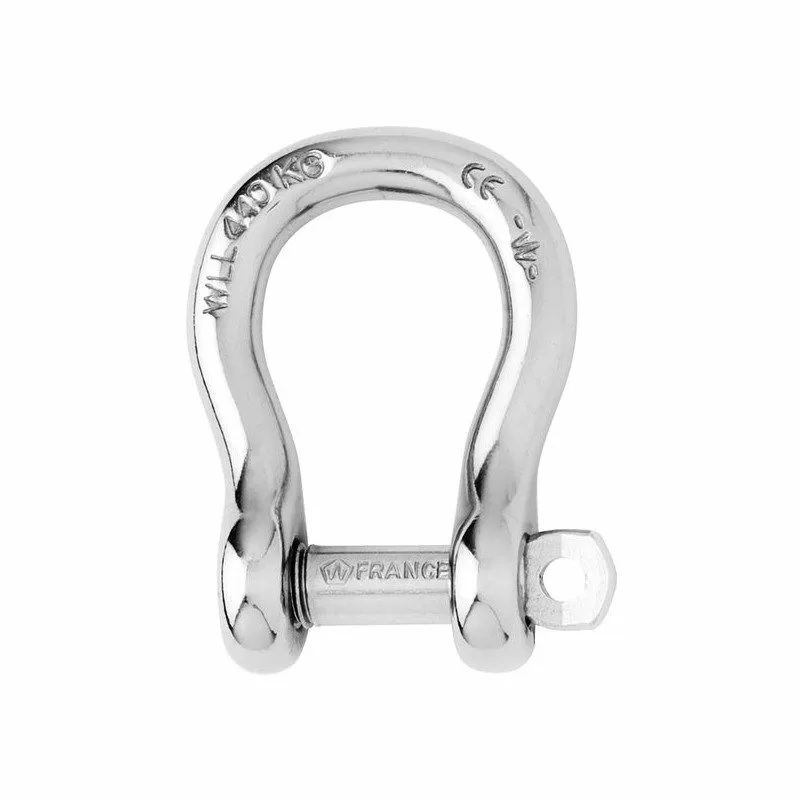

The Wichard brand reference, the Lyre self-locking shackle
Wichard self-locking shackles are all forged in France from 316L stainless steel and are known for their properties and performance. The forged notches prevent the shackle from being unscrewed accidentally. This is one of the most important safety features of the boat, so it is important to choose the right diameter according to the estimated workload. The lyre shackle is often used as a link for anchors or dead bodies or on chain terminations.
All the Wichard fittings are available on Picksea.com, advice and quotation on 02 85 52 65 01
Discover the wide range of shackles, cleats, pulleys and hardware accessories from leading brands such as Ronstan, Harken, Wichard, Spinlock on our Boat Hardware and Equipment section. Products from the best nautical brands and boat equipment are now available on Picksea, the best selection of nautical equipment.
Detailed characteristics of Wichard Self-Locking Shackles 4mm to 20mm
| Reference | Ø | Workload | Breaking load | Height | Width | Weight |
| 1241 | 4 mm | 320 kg | 700 kg | 18 mm | 8 mm | 9 g |
| 1242 | 5 mm | 400 kg | 1,000 kg | 23 mm | 10 mm | 17 g |
| 1243 | 6 mm | 600 kg | 1,500 kg | 28 mm | 12 mm | 30 g |
| 1244 | 8 mm | 1000 kg | 2,700 kg | 37 mm | 16 mm | 68 g |
| 1245 | 10 mm | 1520 kg | 4,300 kg | 47 mm | 20 mm | 137 g |
| 1246 | 12 mm | 2080 kg | 6,000 kg | 55 mm | 24 mm | 233 g |
| 1247 | 16 mm | 3200 kg | 10,000 kg | 70 mm | 32 mm | 540 g |
| 1248 | 20 mm | 4000 kg | 15,000 kg | 80 mm | 40 mm | 1 056 g |
