Detailed features

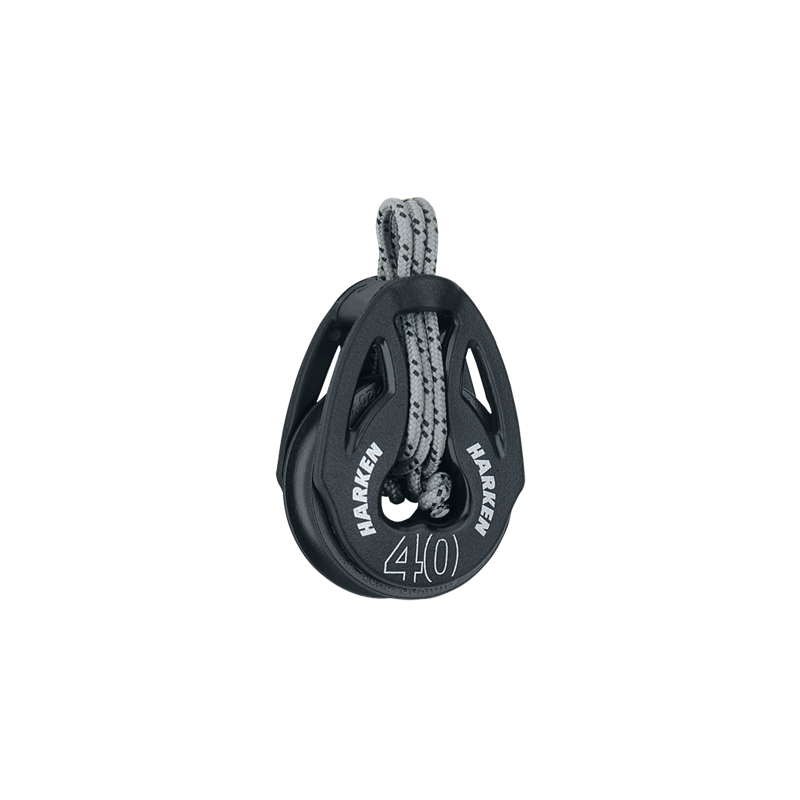

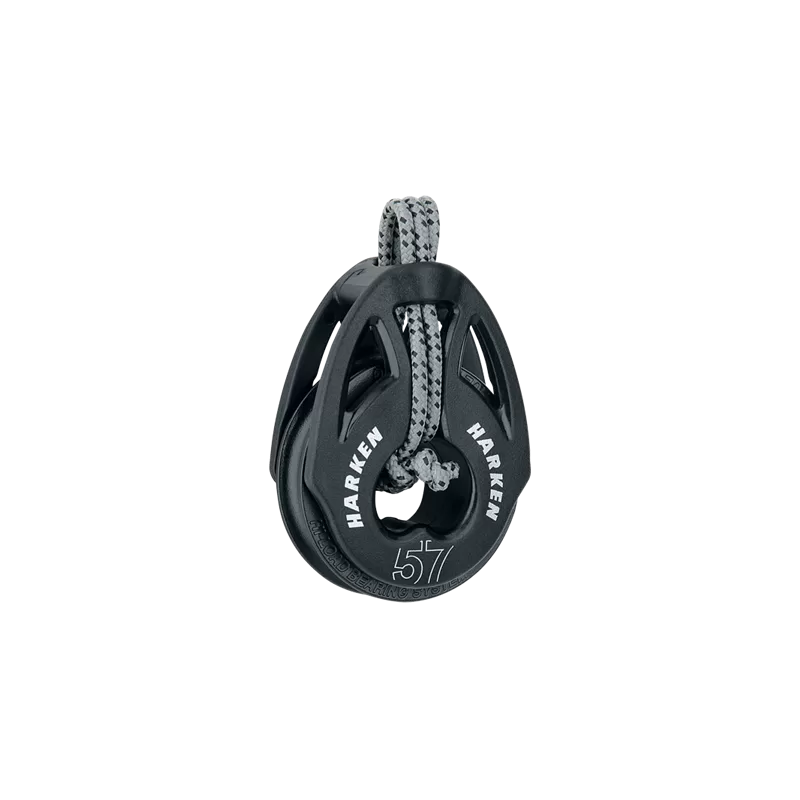

Harken T2 Block Carbo Pulley:
This Harken model has no metal rivets or shackles, the heavy-duty Carbo T2 tackle block is made of composite materials. The version or double can be attached by knotted or spliced transfers to almost any element. These blocks can be used to adjust cars, mainsheet or vang sheets, to create stepped hoists or bridle systems and any other system that requires lightweight blocks.
Detailed characteristics of the pulley
- Dyneema rope included
| Diameter | 4 mm | 4.8 mm | 6.4 mm | 7.9 mm | 9.5 mm | 12.7 mm |
| Height | 22 mm | 27 mm | 39 mm | 48 mm | 53 mm | 64 mm |
| Width | 10 mm | 10 mm | 14 mm | 16 mm | 16 mm | 19 mm |
| UDL | 800 kg | 1400 kg | 2300 kg | 3600 kg | 5800 kg | 7700 kg |
| PL | 600 kg | 800 kg | 1400 kg | 2700 kg | 4500 kg | 7500 kg |
| Weight | 5 g | 15 g | 30 g | 65 g | 90 g | 165 g |
- Version 18 single / double
- Sheave diameter: 18 mm / 18 mm
- Length: 28 mm / 28 mm
- Weight: 7g / 17g
- Maximum string diameter: 5 mm / 5 mm
- Maximum working load: 125 kg / 204 kg
- Breaking load: 450 kg / 680 kg
- Version 29 single / double
- Sheave diameter: 29 mm / 29 mm
- Length: 43 mm / 43 mm
- Weight: 12g / 24g
- Maximum string diameter: 8 mm / 8 mm
- Maximum working load: 150 kg / 272 kg
- Breaking load: 454 kg / 861 kg
- Version 40 single / double
- Sheave diameter: 40 mm / 40 mm
- Length: 57 mm / 57 mm
- Weight: 25g / 48g
- Maximum string diameter: 10 mm / 10 mm
- Maximum working load: 220 kg / 317 kg
- Breaking load: 544 kg / 952 kg
In the same category
4 other products seleted for you-
<p style="text-align:justify;">The Harken ESP sheaves, with their simpler design, complete the current range of sheaves. The sheave shaft is mounted on bearings to withstand high static loads.</p>
<p style="text-align:justify;">This range of blocks offers an ideal solution for halyards, reefing lines, backstay hoists.</p>
available
-
<div class="fiche-txt">
<h2>WICHARD triple pulleys for 8-9 mm rope</h2>
<div class="fiche-txt">These pulleys are suitable for heavy loads and static manoeuvres. The 45 sheave rotates around the stainless steel shaft and is protected by the flanges. The universal head of these pulleys allows a wide choice of attachments. Available with or without balls. Without balls, they are perfect for mainsail hoists, halyards, boom vang, spinnaker sheets for sport catamarans and small keelboats. With balls, they have two rows of lateral balls, which gives them a very good performance under light load. Under high load, the forces are taken up by the stainless steel shaft without lateral friction. You can use them for mainsheet and sheet track, spinnaker sheets and arms, genoa sheets and backstays.</div>
<div class="fiche-txt"></div>
<h2>Characteristics of the WICHARD triple pulleys for 8-9 mm rope</h2>
</div>
available
-
<div class="fiche-txt">
<h2>Ronstan RF8081 Shock XL Pulley</h2>
<div class="fiche-txt">This pulley combines performance and versatility. It is ultra light and ultra compact. It is shock resistant and has a high load capacity.</div>
<div class="fiche-txt"></div>
<h2>Ronstan RF8081 Shock XL pulley features</h2>
</div>
available
-
<div class="fiche-txt">
<h2>Ronstan's range of 40mm Single Orbit Winch Pulleys</h2>
<div class="fiche-txt">No metal elements in these Orbit pulleys, except for the stainless steel ball bearings, everything is made of high-tech polymer resin capable of withstanding heavy loads. The special feature of the Orbit pulleys is also the optimization of the ball track, which frees up the central part of the pulley hub and thus reduces the weight. The Orbit Simple Series 40 is a range of blocks in several versions used for mainsheet and spinnaker sheets on dinghies, catamarans and sport keelboats up to 5 meters, but also for halyard, tackle and backstay reefing on boats up to 8 meters. They can also be used for trimming lines on boats over 8 meters. Very light, with a working load of 325 kilos and a breaking strength of 700 kilios, and a compact weight.</div>
<div class="fiche-txt"></div>
<h2>Ronstan Orbit 40mm Single Pulley Features</h2>
</div>
